BNK30 SNEX1203ZZ CBN Inserts Full Form Milling FC250 Gray Cast Iron Materials Gearbox
1. Halnn Tools CBN Inserts Full Form Face Milling Cast Iron Gearbox
The processing quality of the automotive gearbox housing directly affects the working accuracy, service performance and life of the car. Due to the high processing quality of the gearbox housing, it is especially important when selecting tools.
The machining of the automotive gearbox housing requires a variety of tools such as milling cutters, boring tools, drill bits, reamers, etc. For the cast iron gearbox housing, Halnn Tools recommends CBN tool BN-S300 material and BNK30 material for high-speed milling. Guaranteed high surface finish and dimensional accuracy.
2. BNK30 CBN Inserts Full Form Cutting Conditions
|
Materials |
Process |
Cutting Parameters |
Recommend CBN Grade |
||
|
Cutting Speed Vc(m/min) |
Depth of Cut ap（mm） |
Feed Rate Fr（mm/r） |
|||
|
Grey Iron |
Roughing |
400-1200 |
1-10 |
0.2-1.0 |
BN-S300 |
|
Finishing |
600-2000 |
≤1 |
0.05-0.3 |
BNK30 |
|

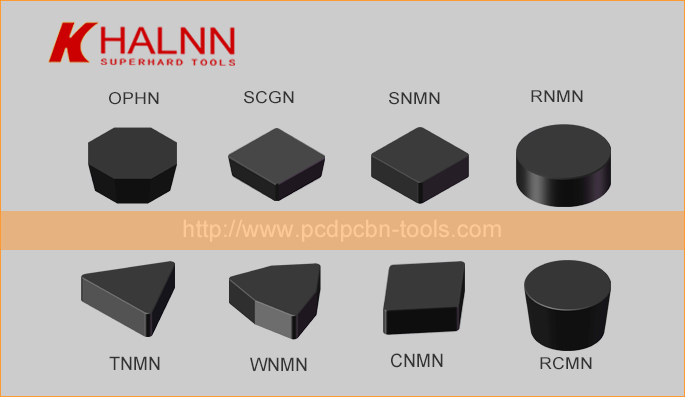

3.Pictures of Halnn Tools BN-S300 CBN Inserts
4.Detailed Data of BNK30 SNFX CBN Inserts
|
Type |
Dimension |
Grades |
|||||
|
L(mm) |
φI.C(mm) |
S(mm) |
r(mm) |
BN-S300 |
BN-S30 |
BNK30 |
|
|
SNEX1203ZZ |
12.7 |
12.7 |
3.18 |
1.2 |
◎ |
◎ |
◎ |
|
SNEX1204ZZ |
12.7 |
12.7 |
4.76 |
1.2 |
● |
● |
● |
5.Application Case
|
Processing conditions: continuous finishing Workpiece hardness: HRC58-62 Blade model: BNK30 Cutting parameters: Vc=180m/min, Fr=0.1mm/r, ap=0.2mm Processing method: dry cutting |
|||
|
Tool material |
Cutting speed |
Tool life |
Productivity |
|
Halnn Tools BNK30 |
180m/min |
800 pieces / edge |
6s |
|
Other Company |
130m/min |
150 pieces / edge |
8.5s |
6.Our service
Pre-Sales Service
l) Prompt reply and 24 hours online,professional team to provide best price and quality product.
l) Same testing support
l ) Every batch of products will be tested to ensure its quality.
After-sales Service
l) The real-time logistics information monitoring
l ) Any questions about the product can be consulted at any time.
l) Product with any problem can return.
7.FAQ
A: We are a manufacturer and wholesaler for diamond & CBN (cubic boron nitride) abrasives and tools.
A: Generally it is 3 -7 days.
A: Normally we do not offer free samples, we could offer the sample for testing, but shipping fee is to be paid by customer as a company policy!
