Henan, China (Mainland)
Halnn
BN-S20 & BN-H20
Blocky
ISO
international standard
Drilling / Milling Tools
Metal Encapsulated
Black
None
Pieces
10
USD 25.000 - 35.000
Zhengzhou
5~8days
10pcs/box,100~300 pcs/carton
10000 / Month
T/T, Other
Hard turning bearing rings used Halnn BN-S20 hard turning inserts
Part 1 The advantages of Hard turning bearings used cbn inserts
1.High working efficiency
For example, when hard turning variable pitch bearing rings,If grinding all the allowance after queching,the grinding time is more than 18h, but if use Halnn cbn inserts with turning instead of grinding process ,it just need 4.5h.At the same machining precision ,hard turing (that means turning insetead of grinding) processing effiency is 4 times than grinding.
2.Low cost
For example,when turning the 1900 variable pitch bearing ring ,Halnn superhard BN-S20 grade solid CBN inserts can be used for finish turning ,and it can machining more than 30 pieces bearing rings.
3.Reduce pollution
Compared with grinding iron grain with the turning iron scraps,Turning will be more convernient to deal with the iron scraps,and the irons scraps costs will be lower ,also reduce the pollution.
Part 2 Application Case
Hard turning wind power bearing ring
Machining Targets:variable pitch bearing ring used for 1.5MW wind power machine sets.
Machine:CNC Vertical Lathe

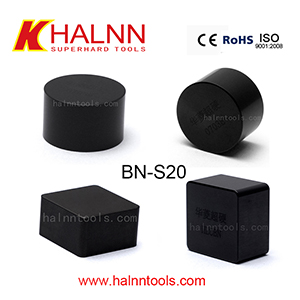

Cutting Inserts Grade:Halnn superhard BN-S20 CBN inserts
Workpiece Dimension:Outer diameter φ1900mm,Thickness 130mm，
Roughness after finish turning:The channel bottom range of double peach channel after finish turning all less than 0.005mm ,and the channel surface roughness will reach Ra0.3μm.
Part 3 The application industry and suited materials of Halnn BN-S20 CBN inserts
1..Suited Materials
BN-S20 mainly used for Quenched steel ,high strength steel ,Rolled steel,heat-resistant and wear-resistant steel ,Nickel-based alloys and other Hard-facing material
2.Engineering machinery,transportation industry,mining machinery,metallurgical machinery, energy sector,such as high speed steel rolls, forged steel cold roll,large gears,high manganese steel, rolling hard steel, heat-resistant alloys, thermal spraying and other hard surface spray processing field.
More about BN-S20 Solid CBN inserts ,http://www.halnntools.com/pro/Solid_CBN_inserts/
