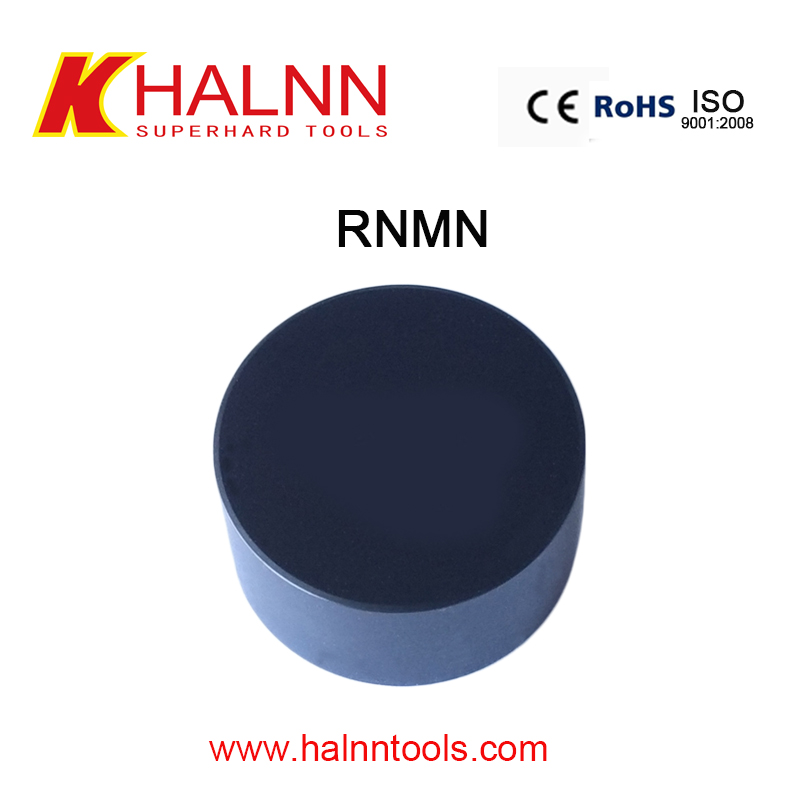

Hard turning High Speed Steel Roll Halnn BN-S20 PCBN insert
Halnn superhard is a professional manufacturer of CBN insert.Halnn as the most famous brand in cbn industry in China,always devote to researching new cbn insert material ,helping customers to solve their problems on hard turning .
Halnn will share you Halnn hard turning insert used for machining hardened steel
1.Hardened Steel
Hardened Steel is hard steel through heat treating ,also called quenched steel ,and the hardness after quenching will above HRC50,and will be hard to machining.
The characteristics of hardened steel when it was hard turning
A.High hardness,strength ,and nearly have no plastic:
B.Large cutting force,high cutting temperature
C.Not easy to appear cutting chips
D.The cutting edge is easily chipping ,wear
E.Low Thermal Conductivity
Specific to hardened steel hard to machining materials ,there are so many different industry used for their work piece ,if use traditional cutting tools ,it will waste processing time and the cost.
Halnn post new cbn insert materials specially researched for different parts with hardened steel materials:BN-S20 Solid CBN insert for rough machining.
2.BN-S20 Solid CBN insert Product Features:
BN-S20 CBN insert belongs to Solid CBN inserts,which is a new technology used for rough machining hard to cut materials,and it is non-metal adhesive CBN inserts,help many manufacturers solve the problems on machining high hardness castings,hardened steel materials.
The advantages of Halnn superhard CBN insert to machine hardened steel as follows:
(1)CBN inserts itself well performance
Halnn superhard researched non-metal adhesive CBN inserts,not only has high hardness,well wear-resistance and High temperature resistance,but also has strong impact roughness resistance.And it also can large allowance and interrupt turning quenched steel parts,and has high processing efficiency.
(2)Compared with Grinding,Costs lower
When grinding parts,we can choose different grinder machines depending on different workpieces,but when Halnn superhard CBN inserts machining quenched steel parts,it doesn’t need special cutting tools,machine and Fixture.It can process on the universal lathe and CNC lathe.
(3)Machine tool has good rigidity,and it can realized hard turning
The Premise of hard turning is that machine rigidity must be good.Modern machine tool which made in recently 15~20 years almost has good rigidity,and are enough to withstand hard turning.Halnn superhard researched some grade non-metal adhesive CBN inserts also can be used some machines whose rigidity are less.
tance and seismic performance.Cutting Depth doesn’t have limit,can cut all the inserts,and can interrupt turning quenched steel parts,such as large-scale gears surface.Halnn superhard CBN inserts will not appear not-wear and chipping phenomenon because of large deformation,large allowance which produced after heat-treatment.Halnn superhard CBN inserts break the myth of which CBN inserts can not used for large allowance interrupt hard turning quenched steel ,and is the worldwide breakthrough in CBN inserts industry.
Application Case:
Machining Parts:High Speed Steel Roll
Hardness:HSD90
Cutting parameters:Vc=50m/min,Fr=0.2mm/r
Machining Type:Roughing and Dry Cutting
Machining Effect:Compared with some European brand,as following figure
| Inserts Materials | Feed Rate(mm/r) | Lifetime/cutting edge |
| Halnn BN-S20 | 0.2mm/r | 25 pcs/cutting edge |
| Some European brand Ceramic inserts | 0.1mm/r | 3 pcs/cutting edge |
Halnn is the most famous cbn insert brand in China, we have most professional engineer team to help you solve your problems on hard turning.
