SNEN120712 CBN Cutting Tool Full Form Face Milling Cast Iron Gearbox with High Efficiency
1. Halnn Tools Cutting Tool Full Form Finish Milling Gearbox
The processing quality of the automotive gearbox housing directly affects the working accuracy, service performance and life of the car. Due to the high processing quality of the gearbox housing, it is especially important when selecting tools.
The machining of the automotive gearbox housing requires a variety of tools such as milling cutters, boring tools, drill bits, reamers, etc. For the cast iron gearbox housing, Halnn Tools recommends CBN tool BN-S300 material and BNK30 material for high-speed milling. Guaranteed high surface finish and dimensional accuracy.
2. BN-S300 CBN Solid CBN Cutting Tool Cutting Conditions
|
Insert Grade |
Binder |
CBN Content(%) |
Granularity |
Hardness(HV) |
|
BN-S300 |
AL,TIC |
97 |
4—6 |
3400—3600 |
|
BN-K10 |
Si,Co |
95 |
≤ 2 |
3300—3500 |
|
BNK30 |
Si,TIC |
97 |
2—4 |
3400—3600 |

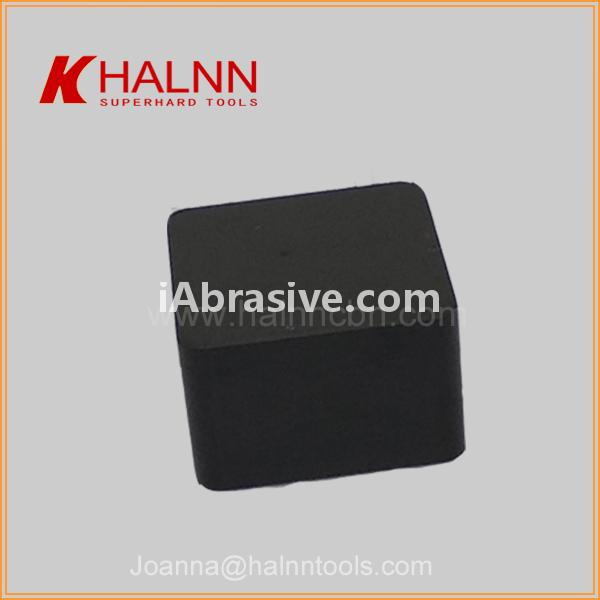

3.Pictures of Halnn Tools BN-S300 Solid Cbn Cutting Tool
4.Detailed Data of BN-S300 Solid Cbn Cutting Tool
|
Type |
Dimension |
Grades |
|||||
|
L(mm) |
φI.C(mm) |
S(mm) |
r(mm) |
BN-S300 |
BN-S30 |
BNK30 |
|
|
SNEN120712 |
12.7 |
12.7 |
7.94 |
1.2 |
● |
◎ |
◎ |
|
SNEN1207ENS |
12.7 |
12.7 |
7.94 |
1.2 |
● |
◎ |
◎ |
|
SNEN19T6ENS |
19.05 |
19.05 |
6.8 |
1.6 |
● |
◎ |
◎ |
5.Application Case
Application of Halnn Tools CBN tool in Gray Cast Iron Gearbox
Processing conditions: continuous finishing
Workpiece hardness: HRC58-62
Blade model: BNK30
Cutting parameters: Vc=180m/min, Fr=0.1mm/r, ap=0.2mm
Processing method: dry cutting
6.Our service
Pre-Sales Service
l) Prompt reply and 24 hours online,professional team to provide best price and quality product.
l) Same testing support
l ) Every batch of products will be tested to ensure its quality.
After-sales Service
l) The real-time logistics information monitoring
l ) Any questions about the product can be consulted at any time.
l) Product with any problem can return.
7.FAQ
A: We are a manufacturer and wholesaler for diamond & CBN (cubic boron nitride) abrasives and tools.
A: Generally it is 3 -7 days.
A: Normally we do not offer free samples, we could offer the sample for testing, but shipping fee is to be paid by customer as a company policy!
