IMTS 2014 Preview: EMAG

According to iAbrasive, EMAG invites manufacturers to visit them at booth N-6846 to meet with technology experts to discuss production solutions for the automotive and commercial vehicle, aerospace, and oilfield industries.

At IMTS 2014, EMAG will feature Manufacturing Systems for Precision Metal Components. Multiple machines from its new modular standard VL and VT product families will be on display. These Modular Standard Machines offer a system approach that is advantageous to establishing a highly efficient manufacturing process, with different operations offered on the same platform allowing for easy interlinking and eliminating any great outlay for automation.

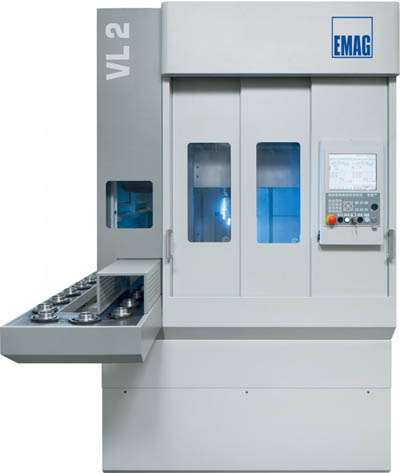

The VL vertical pick-up lathe series opens up new opportunities for the machining of a wide range of chucked components, Small gearwheels, planetary gears, sun gears, sliding sleeves synchronizer rings or flange components, for example, can be machined with great efficiency. The smallest lathe of the VL product family, the VL 2, machines workpieces with a maximum diameter of four inches and a length of up to six inches. Increasing in size, the VL 4, VL 6 and VL 8 offer a number of different turning and milling operations within the framework of a single closed-loop production process. Specially designed for the handling of large components the largest vertical turning machine of the series, the VL 8, Ideal for commercial vehicle production, handles workpieces up to 16 inches in diameter and 12 inches in length.

Built within the same modular concept is the VT-Series for machining large quantities of shaft components. With four axes, a self-loading turret and integrated automation, the VT 2-4 machines shafts with a max diameter of 2.5 inches and 16 inches in length. Spindle speeds of up to 6,000 rpm achieve extremely short cycle times as the shaft is clamped vertically between workspindle and tailstock and machined from two sides. The vertical alignment of the workpiece ensures process integrity, where the unhindered chip flow prevents the build-up of chip nests in the machining area.

• All machines of the VL and VT product families offer the same advantages for every size workpiece:
• A pick-up spindle/turret loads the machine itself, picking up the raw parts from the integrated conveyor and returning the finish machined component.
• A 12-station tool turret known for very short indexing times. For drilling and milling operations it can also be equipped with driven tools in all 12 stations.
• Service units that are quickly and freely accessible, making for short set-up and change-over times.
• A machine base out of MINERALIT polymer concrete to ensure stability through outstanding damping qualities, resulting in exceptional surface finishes.
• Optional Y axis
