Classification of Polishing Mounted Points in Polishing Materials

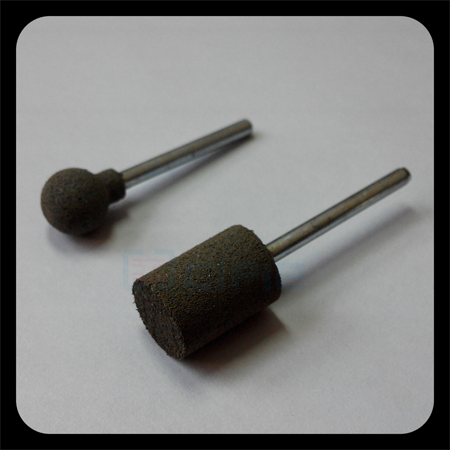

Polishing mounted points in the polishing materials are often used for electric grinding machine, flexible shaft machine and electric drill, which is a kind of small grinding tool with handle in polishing materials. Polishing mounted points mainly include: ceramic polishing mounted points, rubber polishing mounted points, diamond polishing mounted points, abrasive cloth polishing mounted points, etc.

A. Ceramic polishing mounted points: size sand (brown fused alumina, white fused alumina, pink fused alumina and silicon carbide) are sintered together with ceramic bond, usually with metal handle in the central. It is mainly used for grinding all kinds of metal, the inner surface of the aperture and the mould correction.

B. Rubber polishing mounted points: finer size sand is combined with rubber agent, used for mold polishing.

C. Abrasive cloth polishing mounted points: long emery cloths are glued around the metal handle. The particle size is between 60 #-320# for the inner surface polishing of the aperture.

D. Diamond polishing mounted points: a kind of stone material, ceramic material and other non-metallic material of grinding tools, especially involving the grinding tools that use diamond alloy as grinding body, it includes the substrate and mill body, in which the mill body is fixed in the substrate. On the grinding surface of polishing mounted points, the mill body is also set in the form of clearance structure. The substrate is best made by adhesive materials with certain toughness and mill body best made of diamond alloy materials. The utility model is characterized by high grinding performance, simple manufacture, low cost and high quality grinding, which can be applied to the large scale grinding processing.
