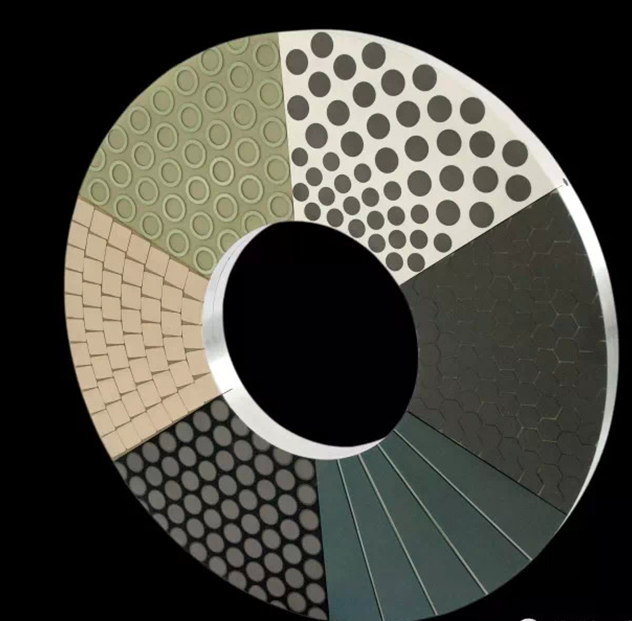

Superhard Material Abrasive Discs Made with Vitrified Bond

Superhard material abrasive discs made with vitrified bond are commonly used in low speed grinding mill whose spindle speed is less than 150 RPM (resin abrasive discs used in rigid feed grinding of spindle speed of 1500 RPM). It has some features like high grinding accuracy, high efficiency, long continuous time and sharp life, etc. For flexible removal of constant pressure, so it needs to keep trimming edge. The double end face grinding mill with vitrified bond superhard materials disc exploited by ZZSM , has a long service life, easy to repair, good wear resistance and low cost etc, which can satisfy high precision grinding requirements of multispecies and large quantities of spare parts.

Main features:

The diameter range of abrasive discs Φ 250 mm ~ 1200 mm Φ, specifications can be customized;

High machining accuracy and parallelism of 0.003 mm or less, flatness of 0.003 mm or less, Ra≤0.2μm;

The dimension error between single plate parts: 1 ~ 2 microns or less;

Single or double end face grinding, fine grinding process, low processing cost, and clean working environment.

Application areas and applicable materials:

Main artifact types: car speed gear box parts and precision bearing; Automobile steering pump parts (blade, stator, rotor, etc.); Air conditioners, refrigerators refrigeration compressor parts (cylinders, vane, piston and valve plate, etc.).

Main applicable materials: all kinds of iron-based powder metallurgy products, cast iron(gray cast iron, FC-250, nickel chromium molybdenum alloy cast iron, etc.), hardening high speed steel, bearing steel and stainless steel (nitrogen), etc.　

Main matching machines:

Korea: AM \ ADL ADL-630-700 \ \ ADL ADL-810-810;

Germany: Peter Wolters \ AC AC - 530-640 \ \ AC AC - 700-700;

Germany: Diskus 450\750 DDS DDS;

Switzerland: STAHLI DLM705 \ STAHLI - DLM1005;

England: Lapmaster DSG720;

China: 2mm 84630\84700\841000 (Ri Sheng of Xinxiang, Scave of Xinxiang, Run Zhi of Luoyang, etc).

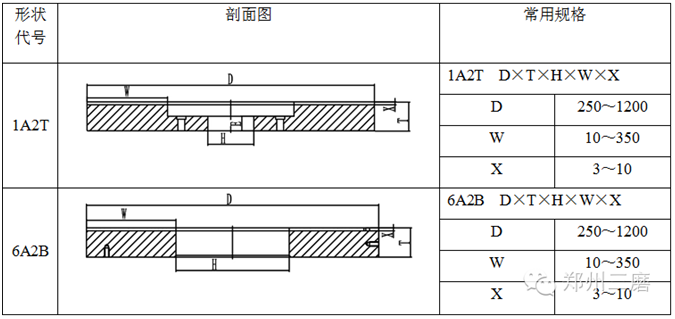

Commonly used specifications:
