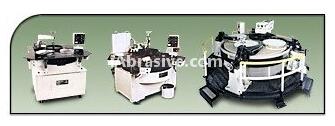

Lapmaster produces a wide range of air-bearing spindle and conventional belt-driven pitch polishing machines
Lapmaster produces a wide range of air-bearing spindle and conventional belt-driven pitch polishing machines for use in both Plano optics production and R&D environments.
The air bearing line of optical polishers, available with 36" and 48" diameter pitch laps, are designed so that the pitch lap and support plate ride on a very thin cushion of compressed air. These machines are driven from an electric motor via a lay shaft, and power is transferred to the lap using a multi-vee drive belt around the circumference of the support plate. This unique design virtually eliminates vibration at the polishing surface, and dramatically improves component flatness and finish results.
The conventional belt-driven line of pitch polishers, available with 60", 72", 84", and 120" diameter pitch laps, are built on a cruciform-shaped structural steel base. The mechanical reduction gearbox and motor are mounted to the side of the polishing plate. The polishing plate is supported by a rigid cast iron support plate turning on a slewing ring. Power is transmitted via a flat belt, and the moving parts of the system are enclosed within a panel-clad base. This innovative polishing plate support design prevents plate deflection common on very large continuous polishers. Isolation of the motor and gearbox also help to virtually eliminate vibration at the polishing surface.
The conventional belt-driven line of optical pitch polishers, available with pitch laps from 60" up to 168" in diameter, are built on heavy-duty fabricated steel and cast iron machine bases. The design is intended to avoid the limiting problems that affect the production of very flat optics, especially vibration and thermal expansion.
The support plate is designed to produce an extremely stable, flat surface. It is made from solid granite, and is usually one-sixth as thick as it is wide to limit deflection under load. Granite is commonly used in flat pitch polishing applications for its slow rate of dimensional change in response to a change in temperature, and eliminates the need for water-cooling typically required on cast iron plate machines.
The support plate is mounted on a fabricated reinforced tripod shaped base with vibration dampening supports. The base is supported on three wedge isolator type, manually adjusted leveling feet. These feet are located at each leg of the tripod, providing maximum machine support and adjustment ability in the event of minor floor settlement.
The area surrounding the base is open for superior heat dissipation, and the motor and gear reducer are mounted to the side to prevent generating and trapping heat under the plate. This design gives the operator a shorter reach to the plate and easy access underneath the machine for maintenance.
The plate is mounted on the base with a turntable bearing that is approximately seventy percent of the plate diameter. This bearing design gives support under the centerline of the plate to balance the load and further limit deflection. The bearing is sized to handle axial loads many times greater than those expected during polishing for a long, trouble free life.
The outer race of the bearing has been modified to act as the driven pulley for the belt drive. This feature has the added benefit of placing the radial load at the centerline of the bearing to eliminate any overturning moment so as to further lengthen the service life. The fiber-reinforced v-flat belt used provides some elasticity to dampen any possible vibration in the drive train.
All of these measures to reduce vibration, thermal expansion, and deflection are aimed at maintaining a flat, stable and smooth running plate that will produce very flat parts as quickly and easily as possible.
Standard Features
Heavy-duty fabricated steel and cast iron machine bases
Rigid granite support plates with 6:1 or better aspect ratios to minimize deflection
Granite Conditioners
Positive drive work holder rings, conditioner, and pitch lap with VSD
Adjustable, dove-tail slide pitch trimming bars for maximum accuracy and repeatability
Suspended, non-contacting work holder rings
Standard Tooling
Three high density cast anodized aluminum work holder rings
Three phenolic work holder discs
Operating and maintenance manual
Available Options
Stainless steel slurry trough
Recirculating slurry system
Eccentric, oscillation of work holder rings
Temperature control for slurry system
Remote, dial-up machine fault alert system
Economy machine versions (contact Lapmaster Representative for details)
